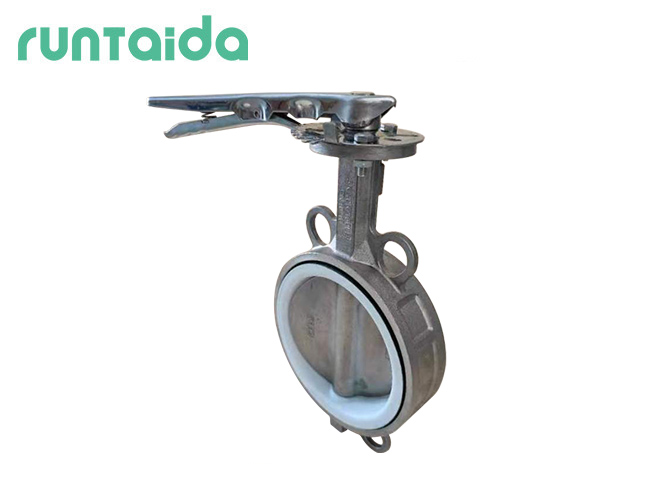

A butterfly valve with a stainless steel body and disc and PTFE liner makes this valve a cost-effective solution for a wide variety of isolation duties. Manually operated, supplied with a lockable lever or gearbox.
PFTE-lined butterfly valves offer a durable seal with full chemical resistance. This means that even highly aggressive and corrosive media can be safely routed.
It is designed to regulate and control the flow of various fluids, including liquids and gases, in pipelines.
Featuring a sturdy construction, this butterfly valve is built with a stainless steel disc. The stainless steel material provides excellent resistance to corrosion, ensuring long-lasting performance even in harsh operating conditions.
Product parameters：
valve body：SS304
Valve seat：PTFE
butterfly disc：SS304
valve shaft：420
Actuator：handle
Size:DN50-DN300
Pressure:PN6/PN10/PN16
Optional:
Valve body:CI/DI/WCB/CF8/CF8M/Bronze
Valve seat:NBR/EPDM/SI/PTFE/VITON/Wearresistance/Heat resistance/Food grade EPDM
butterfly disc:DI/WCB/CF8/CF8M/C954
valve shaft：45/420/304/316
Actuator:Handle/Gearbox/Electric/Pneumatic
Executive standard:
Design and manufacture:GB/T 12238
Face to face length:GB/T 12221
Pressure test:GB/T 13927
Top flange:ISO 5211
End flange:GB/T 17241.6
Wafer Butterfly Valve Series：
Check before installation:
一:For engineering customers
1.provide solutions(According to customer needs)Meet the working conditions
2.Provide drawings/technical support/ installation maintenance
3.Competitive price
二:for Dealer customers
1.Competitive price
2.Customized service(OEM/ODM/Productcatalog/ technical information, packing plan)
3.Visual production
4.Timely delivery
5.Payment method (TT, LC, etc. are acceptable)
6.Large quantity is preferred
